Coil Reels

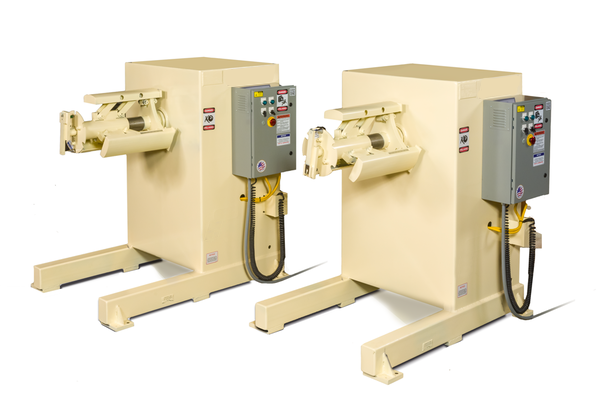

Universal Feed & Machine builds coil reels ranging from 1,500 Lbs. capacity to 60,000 Lbs. capacity. Our reel design is consistent with our approach of building coil handling equipment systems with durability in mind. Most of our single arm reels have the same basic design foundation, providing commonality of design throughout.

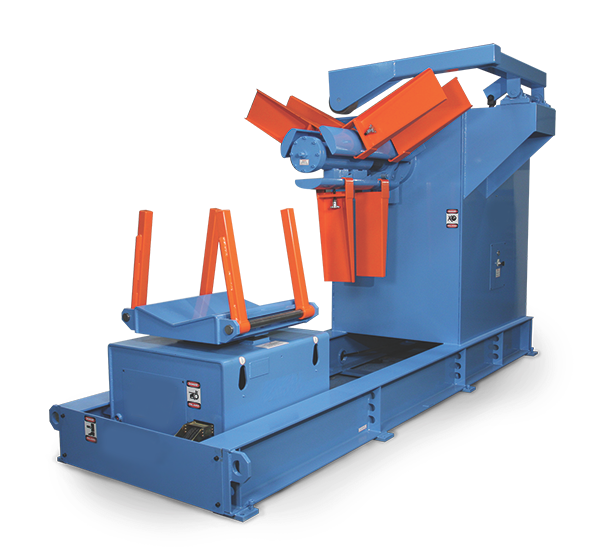

All weight capacities are available as pull-off or powered models with optional coil cars for nearly every reel. Pull-off reels include mechanical, pneumatic or fail-safe brakes with optional threading drives. Powered reels employ AC variable frequency drives with a variety of optional loop control systems including non-contact Laser Loop systems. Safety and efficiency features including coil load cars, auto-centering, and hold down arms, are also available.

For further information please contact us to help you provide a safe and productive solution for your coil handling needs.

Coil reels and upenders

Single Arm Reels

MODEL NUMBER Weight Capacity (lb.) Widths Available Coil O.D. Standard Expansion Standard Spindle
Speed (R.P.M.) **
R15C 1,500 18 54 14-20 2-19 Variable
R25C 2,500 Dec-36 60 (72 Optional) 16-21 2-19 Variable
R46M 4,000-6,000 Dec-36 60 (72 Optional) 16-21 2-19 Variable
R8M 8,000 Dec-36 60 (72 Optional) 16-21 2-19 Variable
R10M 10,000 Dec-48 60 (72 Optional) 16-21 2-19 Variable
R12M 12,000 Dec-48 60 (72 Optional) 16-21 2-19 Variable
R15M 15,000 30-72 72 20-24 2-14 Variable
R20M 20,000 30-72 72 20-24 2-14 Variable
R30M 30,000 36-72 72 20-24 2-14 Variable
R40M 40,000 36-72 72 20-24 2-14 Variable
R50M 50,000 36-78 72 20-24 2-14 Variable
R60M 60,000 36-78 72 22-26 2-14 Variable
** Higher speeds are available. Consult Universal Feed & Machine.

Double Arm Coil Reels

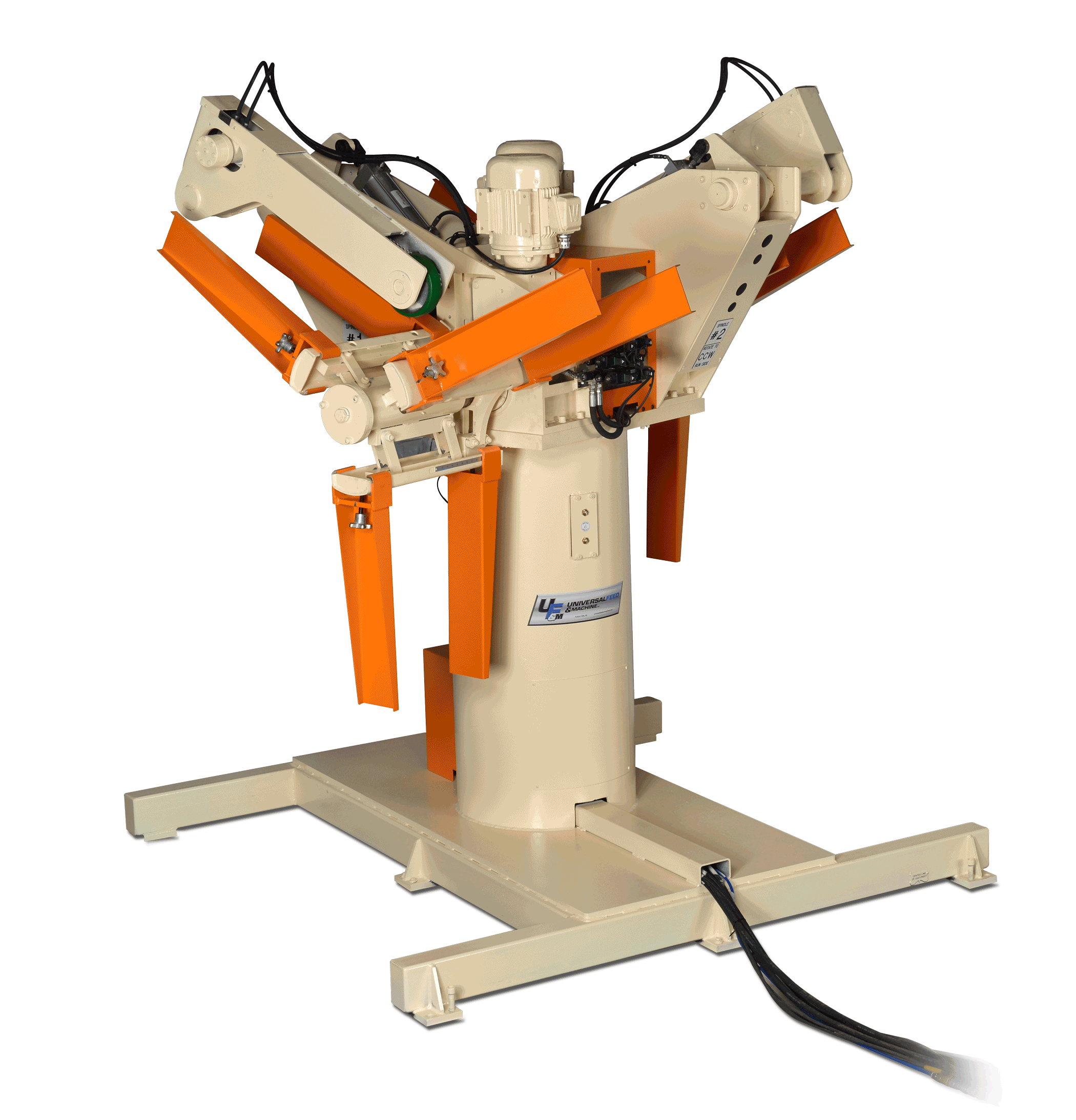

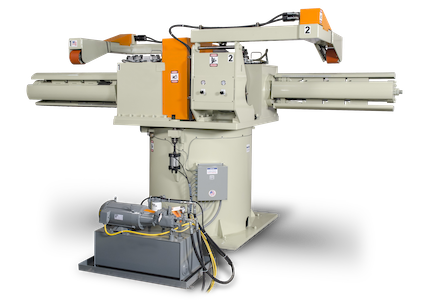

Double arm coil reels are ideal for continuous line operation and can effectively reduce coil change time. One coil can be loaded and pre-staged on one side of the reel while another coil is paying out material on the opposite side. By depressing a shot pin in the base, the new coil of material can be rotated 180 degrees into position for threading. Optional hydraulic threading (for non-powered reels), hydraulic expansion, hydraulic rotation and many other optional features are available.

Double Arm Coil Reels

Double Arm Reels

MODEL NUMBER Weight Capacity (lb.) Widths Available Coil O.D. Standard Expansion Standard Spindle
Speed (R.P.M.) **
DAR15C 1,500 18 54 14-20 2-19 Variable
DAR25C 2,500 Dec-36 60 (72 Optional) 16-21 2-19 Variable
DAR46M 4,000-6,000 Dec-36 60 (72 Optional) 16-21 2-19 Variable
DAR8M 8,000 Dec-36 60 (72 Optional) 16-21 2-19 Variable
DAR10M 10,000 Dec-48 60 (72 Optional) 16-21 2-19 Variable
DAR12M 12,000 Dec-48 60 (72 Optional) 16-21 2-19 Variable
DAR15M 15,000 30-72 72 20-24 2-14 Variable
DAR20M 20,000 30-72 72 20-24 2-14 Variable
** Higher speeds are available. Consult Universal Feed & Machine.

Coil Upenders

Universal Feed & Machine upenders handle 48" wide x 60" O.D. coils as standard. Wider coils and 72" O.D. are available, and standard capacities range from 10,000 to 20,000 lb. Options include nylon facing for “V” nest to prevent possible scratching of outer coil surface and 180 degree powered horizontal rotation to allow loading and unloading of coils from the same side of the unit.

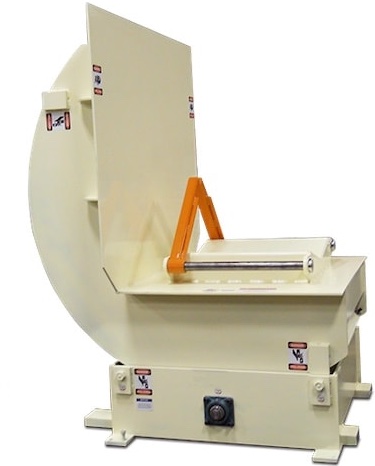

10,000 lb. capacity upender with controls

The machine pictured at left is a standard 10,000 lb. capacity upender with controls (optional 180 degree rotation and narrow coil supports are available).

Hydraulic upenders can also be integrated into coil feeding lines

Hydraulic upenders can also be integrated into coil feeding lines to directly up end coils by indexing 90 degrees. Three phase motor and gear box driven.

Upenders

Weight Capacity (lb.) Width Range Max. Coil OD
10,000 Up to 60" 60*
12,000 Up to 60" 60*
15,000 Up to 60" 72
20,000 Up to 60" 72
* 72" OD optional
