Professional and Precise. It’s Universal.

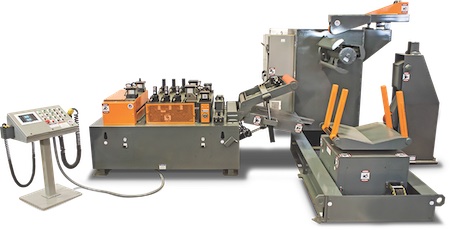

25 Feet or less of space, no problem. The Feed Lease SmartSaver Series can accommodate tight floor space requirements with efficiency and productivity. They are available in coil weights from 6,000 to 60,000 lb. and widths from 12" to 72". A highly sophisticated control package communicates with the Feeder/Straightener and the Coil Reel to optimized accuracy and speed. Products can be purchased as complete systems or individual machines.
Another option for feeder/straightener units is a servo press feed with a pull-thru straightener. These systems are a great way to save space and cost. The servo press feed is sized with a high torque servo motor and reducer to provide the power for the feed rolls to pull the material thru the break rolls of the straightener. Feed Lease offers pull-thru straighteners for all sizes of both our EF and RF series servo press feeds.

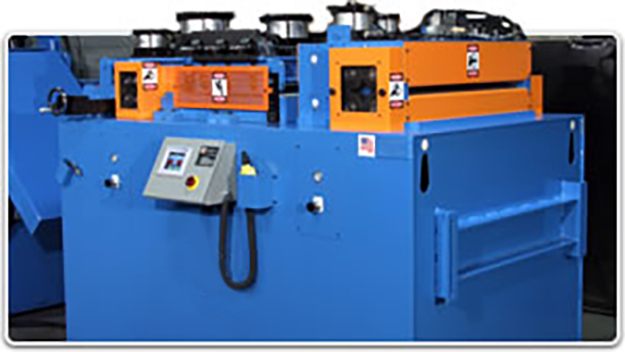

12" wide servo press feed with pull-thru straightener on an adjustable-height cabinet. This unit also has a seven roll pull-thru straightener with manual pinch rolls for a compact solution. This straightener has 2.25" diameter rolls; ideal for light gauge material.

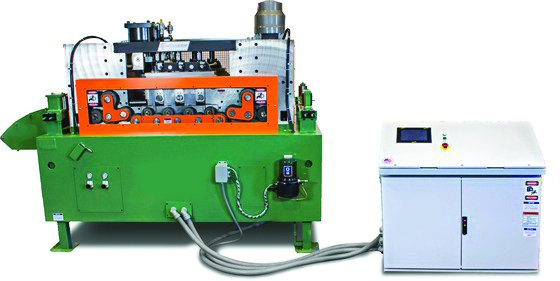

This servo press feed with pull-thru straightener has a larger straightener with 3" diameter rolls. This style system is ideal for many applications ranging in the .125-.250" mcrs thickness range. Pull-thru straighteners for thinner and thicker materials are available.

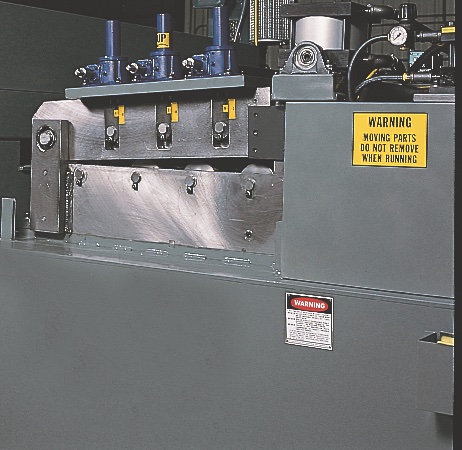

For over 35 years, Feed Lease has employed a unique pull-thru straightener for feeder/straightener combos that require pilot release. We call it Airlift. An Airlift straightener's upper rolls pilot release momentarily, allowing the pilots to register properly. Airlift provides true pilot release without sacrificing the money and space saving benefits of using a feeder/straightener combo.
|Feed Lease Exclusive|
|Pilot releases all upper straightener rolls||No||Yes|
|Straightener head opens quickly for coil threading||No||Yes|
|Individual slide block adjustment||Yes||Yes|
|Can be equipped with powered pinch rolls||Yes||Yes|
|Handle up to .500" thick material||Yes||Yes|
|Sized with rollers from 2.25" to 5" diameter||Yes||Yes|
